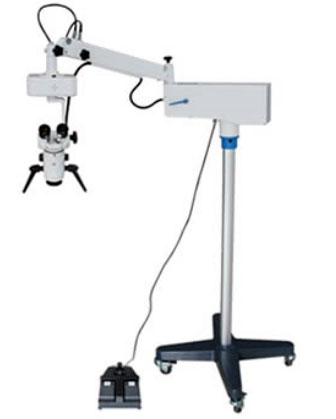

Surgical Microscope Viewlight OSM-300

Eyepiece Magnification

12.5×/16B

Adjustable Diopter

±6D

Adjustable Range for Pupil Distance

50mm～75mm

Visual Angle of Ocular

30°～90°(Eyepiece moving between 0°～180°is optional )

Magnifications of Main Microscope
(diameter of field of view)

4×～24×（F41.5mm～F7.5mm）

Focus of Big Objective Lens

f=200（f=175/250/300 is optional）

Maximal Resolution

119LP/mm

Field of View

2mm～18mm

Working Distance

190mm

Illumination Source

15V/150W，Medical Cold-reflection Halogen Bulb

Illumination Type

6°+0° Coaxial Illumination

Coaxial Illumination

≥50,000lx

Filters

Orange filter（cobalt filter is optional）

Reaching Range of Arm

1020mm

Adjustable Vertical Range

±250mm

Fine Focus Range and Speed

30mm，≤2mm/s

Speed for X-Y and Range

50mm×50mm，≤2mm/s

Voltage

AC220V±10% / 50Hz±1Hz、AC110V±10% / 60Hz±1Hz

Power

200VA

Fuse

T4.0AL 250V (51S-040H)、T8.0AL 125V (51S-080L)

Electrical Safety Standard

Executive Standard:GB9706.1-2007、Class I
