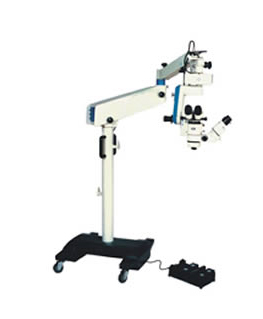

Surgical Microscope Viewlight OSM-400



Characteristics of Surgical Microscope Viewlight OSM-400


* ZOOM magnifications for main microscope, 4X~25X continued adjustment.
* Fine focusing knob is the bottom of assistant binocular. The image of the assistant microscope can be focused independently of the main microscope, to avoid the different diopters.
* Germany made optics gives the surgeon a bright, balanced, and fine image.
* Apochromatic technology used in the optical design, ensures coaxial light focus and makes a clearer field of view.
* Microscope head and arm can be moved freely by using the spring balanced system; locking device of the microscope arm can keep patients away from the lens in a safe distance.
* Independent electrical control box has the function of automatic diagnosis,which brings great convenience for installation and repair if necessary.
* Accessories:Teaching Tube, CCD System and Operation Microscope Image System.

Specifications for the Surgical Microscope Viewlight OSM-400

Eyepiece Magnifications
12.5×/18B
Objective Lens
f=200
Working Distance
170mm
Magnification for Main Microscope
4.6×~27× motorized and manual control
continuous magnification
Magnification for Assistant Microscope
6×、10×、16×
Diameter of Field
F46mm~F8.5mm
Adjustable Diopter
±7D
Adjustable Range for Pupil Distance
50mm ~ 75mm (main microscope is 45mm ~ 80mm)
Field of View
2mm ~ 18mm
Maximal Resolution
119 LP/mm
Focus for Assistant Microscope
≥30mm
Illumination Source
12V/100W,cold reflection halogen lamp for medical use
Illumination Type
6°+0°coaxial illumination of cold light source, 26°oblique illumination
Coaxial Illumination
≥80000lx,1~9level,panel operated
Oblique Illumination
≥60000lx,1~9level, panel operated
Reaching Radius of Arm
1230mm
Adjustable Vertical Range
880mm~1420mm
Fine Focusing Speed and Range
≤2mm/s,≥50mm
Speed for X/Y and Range
≤2mm/s,50mm×50mm
Voltage
AC220V±22V/50Hz±1Hz、 AC110V±11V/60Hz±1Hz
Power
170VA
Fuse
AC250V T4.0A 、AC1250V T8.0A
Electrical Safety Standard
Executive standard:GB9706.1-2007,Class I
Packing Volume
0.769m3,5cartons
Total Gross Weight
215kg
Surgical Microscope Viewlight OMS-400

Contact us for Price

1 Year Warranty
